pynibs.util package

Submodules

pynibs.util.dosing module

Functions used in our perspective on e-field based TMS dosing [1]

References

[1]

Numssen, O., Kuhnke, P., Weise, K., & Hartwigsen, G. (2024). Electric-field-based dosing for TMS. Imaging Neuroscience, 2, 1-12. DOI: 10.1162/imag_a_00106

pynibs.util.dosing.get_intensity_e(e1, e2, target1, target2, radius1, radius2, headmesh, rmt=1, roi='midlayer_lh_rh', verbose=False)

Computes the stimulator intensity adjustment factor based on the electric field.

Parameters:

• e1 (str) – .hdf5 e field with midlayer.

• e2 (str) – .hdf5 e field with midlayer.

• target1 (np.ndarray (3,)) – Coordinates of cortical site of MT.

• target2 (np.ndarray (3,)) – Coordinates of cortical target site.

• radius1 (float) – Electric field of field1 is averaged over elements inside this radius around target1.

• radius2 (float) – Electric field of field2 is averaged over elements inside this radius around target2.

• headmesh (str) – .hdf5 headmesh.

• rmt (float, default: 1) – Resting motor threshold to be corrected.

• roi (str, default: 'midlayer_lh_rh') – Name of roi. Expected to sit in mesh['/data/midlayer/roi_surface/'].

• verbose (bool, default: False) – Flag indicating verbosity.

Returns:

rmt_e_corr – Adjusted stimulation intensity for target2.

Return type:

float

pynibs.util.dosing.get_intensity_e_old(mesh1, mesh2, target1, target2, radius1, radius2, rmt=1, verbose=False)

Computes the stimulator intensity adjustment factor based on the electric field. Something weird is going on here - check simnibs coordinates of midlayer before usage.

Parameters:

• mesh1 (str or simnibs.msh.mesh_io.Msh) – Midlayer mesh containing results of the optimal coil position of MT in the midlayer (e.g.: …/subject_overlays/00001.hd_fixed_TMS_1-0001_MagVenture_MCF_B65_REF_highres.ccd_scalar_central.msh)

• mesh2 (str or simnibs.msh.mesh_io.Msh) – Midlayer mesh containing results of the optimal coil position of the target in the midlayer (e.g.: …/subject_overlays/00001.hd_fixed_TMS_1-0001_MagVenture_MCF_B65_REF_highres.ccd_scalar_central.msh)

• target1 (np.ndarray) – (3,) Coordinates of cortical site of MT.

• target2 (np.ndarray) – (3,) Coordinates of cortical target site.

• radius1 (float) – Electric field in target 1 is averaged over elements inside this radius.

• radius2 (float) – Electric field in target 2 is averaged over elements inside this radius.

• rmt (float, default: 1) – Resting motor threshold, which will be corrected.

• verbose (bool, default: False) – Flag indicating verbosity.

Returns:

rmt_e_corr – Adjusted stimulation intensity for target2.

Return type:

float

pynibs.util.dosing.get_intensity_stokes(mesh, target1, target2, spat_grad=3, rmt=0, scalp_tag=1005, roi=None, verbose=False)

Computes the stimulator intensity adjustment factor according to Stokes et al. 2005 (doi:10.1152/jn.00067.2005). Adjustment is based on target-scalp distance differences: adj = (Dist2-Dist1)*spat_grad

Parameters:

• mesh (str or simnibs.msh.mesh_io.Msh) – Mesh of the head model.

• target1 (np.ndarray) – (3,) Coordinates of cortical site of MT.

• target2 (np.ndarray) – (3,) Coordinates of cortical target site.

• spat_grad (float, default: 3) – Spatial gradient.

• rmt (float, default: 0) – Resting motor threshold, which will be corrected.

• scalp_tag (int, default: 1005) – Tag in the mesh where the scalp is to be set.

• roi (np.ndarray, optional) – (3,N) Array of nodes to project targets onto.

• verbose (bool, default: False) – Print verbosity information.

Returns:

rmt_stokes – Adjusted stimulation intensity for target2.

Return type:

float

pynibs.util.quality_measures module

Functions used in our publication on TMS quality metrics [1]

References

[1]

Numssen, O., Martin, S., Williams, K., Hartwigsen, G., & Knösche, T. (2024). Quantification of subject motion during TMS via pulsewise coil displacement. Brain Stimulation. DOI: 10.1016/j.brain.2024.07.003 #

pynibs.util.quality_measures.c_map_comparison(c1, c2, t1, t2, nodes, tris)

Compares two c-maps in terms of NRMSD and calculates the geodesic distance between the hotspots.

Parameters:

• c1 (np.ndarray of float) – (n_ele) First c-map.

• c2 (np.ndarray of float) – (n_ele) Second c-map (reference).

• t1 (np.ndarray of float) –

  3. Coordinates of the hotspot in the first c-map.

• t2 (np.ndarray of float) – Coordinates of the hotspot in the second c-map.

• nodes (np.ndarray of float) – (n_nodes, 3) Node coordinates

• tris (np.ndarray of float) – (n_tris, 3) Connectivity of ROI elements

Returns:

• nrmsd (float) – Normalized root-mean-square deviation between the two c-maps in (%).

• gdist (float) – Geodesic distance between the two hotspots in (mm).

pynibs.util.quality_measures.calc_tms_motion_params(coil_positions, reference=None)

Computes motion parameters for a set of coil_positions, i.e., coil shifts in [mm] in RAS coordinate system and rotations (pitch, roll, yaw) in [°]. Motion is computed w.r.t. the first (‘absolute’) and to the previous (‘relative’) stimulation.

Position shifts are quantified with respect to the subject/nifti-specific RAS coordinate system. Rtrational changes are quantified with respect to the coil axes as follows:

• pitch: rotation around left/right axis of coil

• roll: rotation around coil handle axis

• yaw: rotation around axis from center of coil towards head

Motion parameters for first coil position are set to 0.

Parameters:

• coil_positions (np.ndarray of float) – (4, 4, n_pulses).

• reference (np.ndarray of float, optional) – (4, 4) Reference coil placement. If None (default), the first placement from coil_positions is used.

Returns:

• pos_diff_abs (np.ndarray) – (3, n_pulses) Absolute position differences (R, A, S).

• euler_rots_abs (np.ndarray) – (3, n_pulses) Absolute rotation angles in euler angles (alpha, beta, gamma).

• pos_diff_rel (np.ndarray) – (3, n_pulses) Relative position differences (R, A, S).

• euler_rots_rel (np.ndarray) – (3, n_pulses) Relative rotation angles in euler angles (alpha, beta, gamma).

pynibs.util.quality_measures.compute_pcd(delta_pos, delta_rot, skin_cortex_distance=20)

Computes _P_ulsewise _C_oil _D_isplacements (PCD) based on 3 position parameters (delta_pos) and 3 rotation parmeters (delta_rot).

The coil rotations (in euler angles) are transformed into a positional change projected on the cortex based on skin_cortex_distance as a proxy for the (local) change of the stimulation. delta_pos and delta_rot are expected to quantify motion w.r.t. the target coil position/rotation, for example the absolute deltas to the first stimulation.

Axes definitions delta_pos and delta_rot are supposed to follow this axes definition (SimNIBS):

• delta_pos

  • X and Y: coil movement tangential to head surface

  • Z: coil movement perpendicular to head surface

• delta_rot

  • pitch: rotation around left/right axis of coil

  • roll: rotation around coil handle axis

  • yaw: rotation around axis from center of coil towards head

Examples

# get TriggerMarkers from a Localite session
mats = pynibs.read_triggermarker_localite(tm_fn)[0]

# calculate absolute and relative coil displacements
delta_pos_abs, delta_rot_abs, delta_pos_rel, delta_rot_rel = pynibs.util.quality_measures.calc_tms_motion_params(mats)

# compute PCD
pcd, delta_pos, delta_rot = pynibs.util.quality_measures.compute_pcd(delta_pos_abs, delta_rot_abs)

# plot movement
axes = pynibs.util.quality_measures.plot_tms_motion_parameter(delta_pos_rel, delta_rot_rel, pcd)
matplotlib.pyplot.show()

Parameters:

• delta_pos (np.ndarray) – (3, n_pulses) Absolute position differences (R, A, S).

• delta_rot (np.ndarray) – (3, n_pulses) Absolute rotation angles in euler angles (alpha, beta, gamma).

• skin_cortex_distance (int, default: 20) – Cortical depth of target to adjust coil rotations for.

Returns:

• pcd (np.ndarray) – Pulsewise coil displacements.

• delta_pos (np.ndarray) – (n_pulses, ) sum(abs(delta_pos)) per pulse.

• delta_rot (np.ndarray) – (n_pulses, ) sum(abs(delta_rot projected by skin_cortex_distance)) per pulse.

pynibs.util.quality_measures.euclidean_dist(nodes, tris, source, source_is_node=True)

Returns Euclidean distance of all nodes to source node (triangle). This is just a wrapper for the gdist package.

Examples

with h5py.File(fn,'r') as f:
    tris = f['/mesh/elm/triangle_number_list'][:]
    nodes = f['/mesh/nodes/node_coord'][:]
nodes_dist_euc, tris_dist_euc = euclidean_dist(nodes, tris, 3017)

pynibs.write_data_hdf5(data_fn,
                    data=[tris_dist_euc, nodes_dist_euc],
                    data_names=["tris_dist_euc", "nodes_dist_euc", "])
pynibs.write_xdmf(data_fn,hdf5_geo_fn=fn)

Parameters:

• nodes (np.ndarray) – (n_nodes,3) The nodes, determined by their x-y-z-coordinates.

• tris (np.ndarray) – (n_tris,3) Every triangle, determined by the node indices (vertices) that form it.

• source (np.ndarray(int) or int) – Euclidean distances of all nodes (or triangles) to this one will be computed.

• source_is_node (bool) – Whether source is a node idx or a triangle idx.

Returns:

• nodes_dist (np.ndarray) – (n_nodes,) Geodesic distance between source and all nodes in mm.

• tris_dist (np.ndarray) – (n_tris,) Geodesic distance between source and all triangles in mm.

pynibs.util.quality_measures.geodesic_dist(nodes, tris, source, source_is_node=True)

Returns geodesic distance in mm from all nodes to source node (or triangle). This is just a wrapper for the gdist package.

Examples

with h5py.File(fn,'r') as f:
    tris = f['/mesh/elm/triangle_number_list'][:]
    nodes = f['/mesh/nodes/node_coord'][:]
nodes_dist_ged, tris_dist_ged = geodesic_dist(nodes, tris, 3017)

pynibs.write_data_hdf5(data_fn,
                    data=[tris_dist_ged, nodes_dist_ged],
                    data_names=["tris_dist_ged", "nodes_dist_ged"])
pynibs.write_xdmf(data_fn,hdf5_geo_fn=fn)

Parameters:

• nodes (np.ndarray) – (n_nodes,3) The nodes, determined by their x-y-z-coordinates.

• tris (np.ndarray) – (n_tris,3) Every triangle, determined by the node indices (vertices) that form it.

• source (np.ndarray(int) or int) – Geodesic distances of all nodes (or triangles) to this one will be computed.

• source_is_node (bool) – Whether source is a node idx or a triangle idx.

Returns:

• nodes_dist (np.ndarray) – (n_nodes,) Geodesic distance between source and all nodes in mm.

• tris_dist (np.ndarray) – (n_tris,) Geodesic distance between source and all triangles in mm.

pynibs.util.quality_measures.nrmsd(array, array_ref, error_norm='relative', x_axis=False)

Determine the normalized root-mean-square deviation between input data and reference data.

Notes

nrmsd = np.sqrt(1.0 / n_points * np.sum((data - data_ref) ** 2)) / (max(array_ref) - min(array_ref))

Parameters:

• array (np.ndarray) – input data [ (x), y0, y1, y2 … ].

• array_ref (np.ndarray) – reference data [ (x_ref), y0_ref, y1_ref, y2_ref … ]. if array_ref is 1D, all sizes have to match.

• error_norm (str, optional, default="relative") – Decide if error is determined “relative” or “absolute”.

• x_axis (bool, default: False) – If True, the first column of array and array_ref is interpreted as the x-axis, where the data points are evaluated. If False, the data points are assumed to be at the same location.

Returns:

normalized_rms – ([array.shape[1]]) Normalized root-mean-square deviation between the columns of array and array_ref.

Return type:

np.ndarray of float

pynibs.util.quality_measures.nrmse(array, array_ref, x_axis=False)

Determine the normalized root-mean-square deviation between input data and reference data.

nrmse = np.linalg.norm(array - array_ref) / np.linalg.norm(array_ref)

Parameters:

• array (np.ndarray) – input data [ (x), y0, y1, y2 … ].

• array_ref (np.ndarray) – reference data [ (x_ref), y0_ref, y1_ref, y2_ref … ]. if array_ref is 1D, all sizes have to match.

• x_axis (bool, default: False) – If True, the first column of array and array_ref is interpreted as the x-axis, where the data points are evaluated. If False, the data points are assumed to be at the same location.

Returns:

nrmse – ([array.shape[1]]) Normalized root-mean-square deviation between the columns of array and array_ref.

Return type:

np.ndarray of float

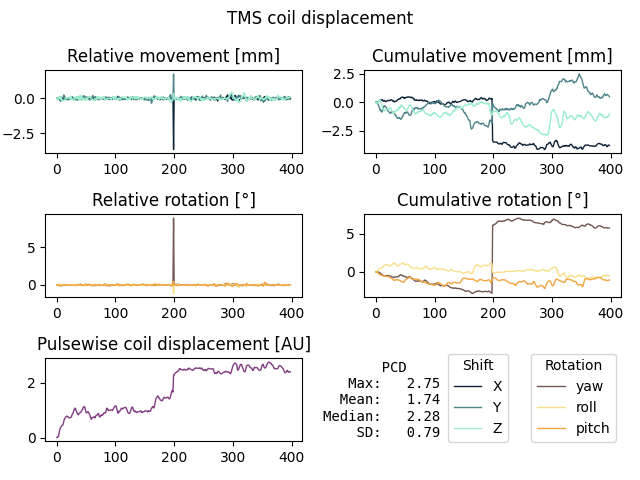

pynibs.util.quality_measures.plot_tms_motion_parameter(pos_diff, euler_rots, pcd=None, fname=None)

Plots TMS coil motion parameters.

Pulsewise Coil Displacement (PCD) is a compound metric to quantify TMS coil movements. Data for a double (space) cTBS400 protocol is shown (with a break after 200 bursts).

Parameters:

• pos_diff (np.ndarray) – (3, n_pulses) Position differences (R, A, S).

• euler_rots (np.ndarray) – (3, n_pulses) Rotation angles in euler angles (alpha, beta, gamma).

• pcd (np.ndarray, optional) – (n_pulses,) pulsewise coil displacements.

• fname (str, optional) – Filename to save plot.

Returns:

axes – Figure axes.

Return type:

matplotlib.pyplot.axes

pynibs.util.rotations module

Some helper functions to take care of geometric rotations

pynibs.util.rotations.bases2rotmat(v1, v2)

Computes rotation matrix to rotate basis 1 (v1) to another basis (v2).

Parameters:

• v1 (np.ndarray) – (3, 3) original basis.

• v2 (np.ndarray) – (3, 3) rotated basis.

Returns:

rot_mat – (3, 3) rotation matrix to go from v1 to v2.

Return type:

np.ndarray

pynibs.util.rotations.euler_angles_to_rotation_matrix(theta)

Determines the rotation matrix from the three Euler angles theta = [Psi, Theta, Phi] (in rad), which rotate the coordinate system in the order z, y’, x’’.

Parameters:

theta (np.ndarray) –

3. Euler angles in rad.

Returns:

r –

3. Rotation matrix (z, y’, x’’).

Return type:

np.ndarray

pynibs.util.rotations.matsim2paraview(matsim)

Convert a matsimnibs matrix to a format that can be used in ParaView.

Parameters:

matsim – (4, 4) matsimnibs matrix.

pynibs.util.rotations.normalize_rot(rot)

Normalize rotation matrix.

Parameters:

rot (np.ndarray of float) – (3, 3) Rotation matrix.

Returns:

rot_norm – (3, 3) Normalized rotation matrix.

Return type:

np.ndarray of float

pynibs.util.rotations.points_to_triangles(points, triangles)

Compute the closest points on a triangle mesh to a set of points.

Taken from https://stackoverflow.com/questions/32342620/closest-point-projection-of-a-3d-point-to-3d-triangles-with-numpy-scipy

Parameters:

• points (np.ndarray) – (n, 3) Points to project.

• triangles (np.ndarray) – (m, 3, 3) Triangle points.

Returns:

(n, 3) Closest points on the triangle mesh.

Return type:

np.ndarray

pynibs.util.rotations.quat_rotation_angle(q)

Computes the rotation angle from the quaternion in rad.

Parameters:

q (np.ndarray of float) – Quaternion, either only the imaginary part (length=3) [qx, qy, qz] or the full quaternion (length=4) [qw, qx, qy, qz].

Returns:

alpha – Rotation angle of quaternion in rad.

Return type:

float

pynibs.util.rotations.quat_to_rot(q)

Computes the rotation matrix from quaternions.

Parameters:

q (np.ndarray of float) – Quaternion, either only the imaginary part (length=3) or the full quaternion (length=4).

Returns:

rot – (3, 3) Rotation matrix, containing the x, y, z axis in the columns.

Return type:

np.ndarray of float

pynibs.util.rotations.quaternion_conjugate(q)

https://stackoverflow.com/questions/15425313/inverse-quaternion

Parameters:

q (np.ndarray) – Input quaternion.

Returns:

Conjugate of the input quaternion.

Return type:

np.ndarray

pynibs.util.rotations.quaternion_diff(q1, q2)

https://math.stackexchange.com/questions/2581668/ error-measure-between-two-rotations-when-one-matrix-might-not-be-a-valid-rotatio

Parameters:

• q1 (np.ndarray) – Quaternion 1.

• q2 (np.ndarray) – Quaternion 2.

Returns:

Difference between the two quaternions.

Return type:

float

pynibs.util.rotations.quaternion_inverse(q)

Compute the inverse of a quaternion.

The inverse of a quaternion is computed by taking the conjugate of the quaternion and dividing it by the norm of the quaternion. https://stackoverflow.com/questions/15425313/inverse-quaternion

Parameters:

q (np.ndarray) – Input quaternion.

Returns:

Inverse of the input quaternion.

Return type:

np.ndarray

pynibs.util.rotations.rot_to_quat(rot)

Computes the quaternions from rotation matrix (see e.g. https://www.euclideanspace.com/maths/geometry/rotations/conversions/matrixToQuaternion/).

Parameters:

rot (np.ndarray of float) – (3, 3) Rotation matrix, containing the x, y, z axis in the columns.

Returns:

q – Quaternion, full (length=4).

Return type:

np.ndarray of float

pynibs.util.rotations.rotate_matsimnibs_euler(axis, angle, matsimnibs, metric='rad')

Rotates a matsimnibs matrix around axis by angle.

Parameters:

• axis (str) – One of (‘x’,’y’,’z’).

• angle (float) – Angle to rotate system around axis.

• matsimnibs (np.ndarray) – (4, 4) SimNIBS matsimnibs coil orientation and position matrix.

• metric (str, default: 'rad') – One of (‘rad’, ‘deg’). If deg, angle is transformed to radians.

Returns:

rotated_matsimnibs – (4, 4) Rotated system.

Return type:

np.ndarray

pynibs.util.rotations.rotation_matrix_to_euler_angles(r)

Calculates the euler angles theta = [Psi, Theta, Phi] (in rad) from the rotation matrix R which, rotate the coordinate system in the order z, y’, x’’ (https://www.learnopencv.com/rotation-matrix-to-euler-angles/).

Parameters:

r (np.ndarray) – (3, 3) Rotation matrix (z, y’, x’’).

Returns:

theta –

3. Euler angles in rad.

Return type:

np.ndarray

pynibs.util.rotations.rotmat_from_vecs(vec1, vec2)

Find the rotation matrix that aligns vec1 to vec2.

Parameters:

• 1 (vec) – A 3D vector (‘source’).

• 2 (vec) – A 3D vector (‘destination’).

Returns:

• rot_mat (scipy.Rotation)

• A transform matrix (3x3) which when applied to vec1, aligns it with vec2.

pynibs.util.simnibs_io module

pynibs.util.utils module

pynibs.util.utils.add_center(var)

Adds center to argument list.

Parameters:

var (list of float) –

2. List containing two values [f1,f2].

Returns:

out –

3. List containing the average value in the middle [f1, mean(f1,f2), f2].

Return type:

list of float

pynibs.util.utils.bash(command)

Executes bash command and returns output message in stdout (uses os.popen).

Parameters:

command (str) – Bash command.

Returns:

• output (str) – Output from stdout.

• error (str) – Error message from stdout.

pynibs.util.utils.bash_call(command)

Executes bash command and returns output message in stdout (uses subprocess.Popen).

Parameters:

command (str) – bash command.

pynibs.util.utils.calc_n_network_combs(n_e, n_c, n_i)

Determine number of combinations if all conditions may be replaced between N_i elements (mixed interaction).

Parameters:

• n_e (int) – Number of elements in the ROI.

• n_c (int) – Number of conditions (I/O curves).

• n_i (int) – Number of maximum interactions.

Returns:

n_comb – Number of combinations.

Return type:

int

pynibs.util.utils.compute_chunks(seq, num)

Splits up a sequence _seq_ into _num_ chunks of similar size. If len(seq) < num, (num-len(seq)) empty chunks are returned so that len(out) == num.

Parameters:

• seq (list of something) – (n_ele) List containing data or indices, which is divided into chunks.

• num (int) – Number of chunks to generate.

Returns:

out – num sub-lists of seq with each of a similar number of elements (or empty).

Return type:

list of num sublists

pynibs.util.utils.cross_product(A, B)

Evaluates the cross product between the vector pairs in a and b using pure Python.

Parameters:

• A (np.ndarray of float) – (2, (N, 3)) Input vectors, the cross product is evaluated between.

• B (np.ndarray of float) – (2, (N, 3)) Input vectors, the cross product is evaluated between.

Returns:

c – (N, 3) Cross product between vector pairs in a and b.

Return type:

np.ndarray of float

pynibs.util.utils.cross_product_einsum2(a, b)

Evaluates the cross product between the vector pairs in a and b using the double Einstein sum.

Parameters:

• a (np.ndarray of float) – (2, (N, 3))

• b (np.ndarray of float) – (2, (N, 3)) Input vectors, the cross product is evaluated between.

Returns:

c – (N, 3) Cross product between vector pairs in a and b.

Return type:

np.ndarray of float

pynibs.util.utils.differential_evolution(fobj, bounds, mut=0.8, crossp=0.7, popsize=20, its=1000, **kwargs)

Differential evolution optimization algorithm.

Parameters:

• fobj (function object) – Function to optimize.

• bounds (dict) – Dictionary containing the bounds of the free variables to optimize.

• mut (float, default: 0.8) – Mutation factor.

• crossp (float, default: 0.7) – Cross population factor.

• popsize (int, default: 20) – Population size.

• its (int, default: 1000) – Number of iterations.

• kwargs (dict) – Arguments passed to fobj (constants etc…).

Returns:

• best (dict) – Dictionary containing the best values.

• fitness (float) – Fitness value of the best solution.

pynibs.util.utils.generalized_extreme_value_distribution(x, mu, sigma, k)

Generalized extreme value distribution.

Parameters:

• x (ndarray of float) – (n_x) Events.

• mu (float) – Mean value.

• sigma (float) – Standard deviation.

• k (float) – Shape parameter.

Returns:

y – (n_x) Probability density of events

Return type:

ndarray of float

pynibs.util.utils.get_cartesian_product(array_list)

Generate a cartesian product of input arrays (all combinations).

cartesian_product = get_cartesian_product(array_list)

Parameters:

array_list (list of 1D ndarray of float) – Arrays to compute the cartesian product with.

Returns:

cartesian_product – (M, len(arrays)) Array containing the cartesian products (all combinations of input vectors).

Return type:

ndarray of float

Examples

import pygpc
out = pygpc.get_cartesian_product(([1, 2, 3], [4, 5], [6, 7]))
out

pynibs.util.utils.intersection_vec_plan(ray_dir, ray_origin, plane_n, plane_p, eps=1e-06)

Computes intersection between vector (‘ray’) and plane.

Parameters:

• ray_dir (np.ndarray) – (3,) (Rotated) vector direction.

• ray_origin (np.ndarray) – (3,) Any point on the ray.

• plane_n (np.ndarray) – (3,) Plane normal.

• plane_p (np.ndarray) – (3,) Any point on the plane.

• eps (float, default=1e-6) – Resolution.

Returns:

inters – (3,) Intersection location. (np.inf, np.inf, np.inf) if no intersection.

Return type:

np.ndarray

pynibs.util.utils.invert(trans)

Invert rotation matrix.

Parameters:

trans (np.ndarray of float) – (3, 3) Rotation matrix.

Returns:

rot_inv – (3, 3) Inverse rotation matrix.

Return type:

np.ndarray of float

pynibs.util.utils.likelihood_posterior(x, y, fun, bounds=None, verbose=True, normalized_params=False, **params)

Determines the likelihood of the data following the function “fun” assuming a two variability source of the data pairs (x, y) using the posterior distribution.

Parameters:

• x (ndarray of float) – (n_points) x data.

• y (ndarray of float) – (n_points) y data

• fun (function) – Function to fit the data to (e.g. sigmoid).

• bounds (dict, optional) – Dictionary containing the bounds of “sigma_x” and “sigma_y” and the free parameters of fun.

• verbose (bool, default: True) – Print function output after every calculation.

• normalized_params (bool, default: False) – Are the parameters passed in normalized space between [0, 1]? If so, bounds are used to denormalize them before calculation.

• **params (dict) – Free parameters to optimize. Contains “sigma_x”, “sigma_y”, and the free parameters of fun.

Returns:

l – Negative likelihood.

Return type:

float

pynibs.util.utils.list2dict(l)

Transform list of dicts with same keys to dict of list

Parameters:

l (list of dict) – List containing dictionaries with same keys.

Returns:

d – Dictionary containing the entries in a list.

Return type:

dict of lists

pynibs.util.utils.load_muaps(fn_muaps, fs=1000000.0, fs_downsample=100000.0)

pynibs.util.utils.mutual_coherence(array)

Calculate the mutual coherence of a matrix A. It can also be referred as the cosine of the smallest angle between two columns.

mutual_coherence = mutual_coherence(array)

Parameters:

array (ndarray of float) – Input matrix.

Returns:

mutual_coherence – Mutual coherence.

Return type:

float

pynibs.util.utils.norm_percentile(data, percentile)

Normalizes data to a given percentile.

Parameters:

• data (np.ndarray) – (n_data, ) Dataset to normalize.

• percentile (float) – Percentile of normalization value [0 … 100].

Returns:

data_norm – (n_data, ) Normalized dataset.

Return type:

np.ndarray

pynibs.util.utils.rd(array, array_ref)

Determine the relative difference between input data and reference data.

Parameters:

• array (np.ndarray) – input data [ (x), y0, y1, y2 … ].

• array_ref (np.ndarray) – reference data [ (x_ref), y0_ref, y1_ref, y2_ref … ] if array_ref is 1D, all sizes have to match.

Returns:

rd – (array.shape[1]) Relative difference between the columns of array and array_ref.

Return type:

ndarray of float

pynibs.util.utils.recursive_len(item)

Determine len of list of lists (recursively).

Parameters:

item (list of list) – List of list.

Returns:

len – Total length of list of lists.

Return type:

int

pynibs.util.utils.sigmoid_log_p(x, p)

pynibs.util.utils.tal2mni(coords, direction='tal2mni', style='nonlinear')

Transform Talairach coordinates into (SPM) MNI space and vice versa.

This is taken from https://imaging.mrc-cbu.cam.ac.uk/imaging/MniTalairach and http://gibms.mc.ntu.edu.tw/bmlab/tools/data-analysis-codes/mni2tal-m/

Parameters:

• coords (np.ndarray or list) – x,y,z coordinates.

• direction (str, default: 'tal2mni') – Transformation direction. One of (‘tal2mni’, ‘mni2tal’).

• style (str, default: 'nonlinear') – Transformation style. One of (‘linear’, ‘nonlinear’).

Returns:

coords_trans – Transformed coordinates.

Return type:

np.ndarray

pynibs.util.utils.unique_rows(a)

Returns the unique rows of np.array(a).

Parameters:

a (np.ndarray of float) – (m, n) Array to search for double row entries.

Returns:

a_unique – (k, n) array a with only unique rows.

Return type:

np.ndarray
