pynibs.util package¶

Submodules¶

pynibs.util.dosing module¶

pynibs.util.quality_measures module¶

pynibs.util.quality_measures.c_map_comparison(c1, c2, t1, t2, nodes, tris)¶

Compares two c-maps in terms of NRMSD and calculates the geodesic distance between the hotspots.

Parameters:

c1 (np.ndarray of float) – (n_ele) First c-map.
c2 (np.ndarray of float) – (n_ele) Second c-map (reference).
t1 (np.ndarray of float) –
1. Coordinates of the hotspot in the first c-map.
t2 (np.ndarray of float) – Coordinates of the hotspot in the second c-map.
nodes (np.ndarray of float) – (n_nodes, 3) Node coordinates
tris (np.ndarray of float) – (n_tris, 3) Connectivity of ROI elements

Returns:

nrmsd (float) – Normalized root-mean-square deviation between the two c-maps in (%).
gdist (float) – Geodesic distance between the two hotspots in (mm).

pynibs.util.quality_measures.calc_tms_motion_params(coil_positions, reference=None)¶

Computes motion parameters for a set of coil_positions, i.e., coil shifts in [mm] in RAS coordinate system and rotations (pitch, roll, yaw) in [°]. Motion is computed w.r.t. the first (‘absolute’) and to the previous (‘relative’) stimulation.

Position shifts are quantified with respect to the subject/nifti-specific RAS coordinate system. Rorational changes are quantified with respect to the coil axes as follows:

pitch: rotation around left/right axis of coil

roll: rotation around coil handle axis

yaw: rotation around axis from center of coil towards head

Motion parameters for first coil position are set to 0.

Parameters:

coil_positions (np.ndarray of float) – (4, 4, n_pulses).
reference (np.ndarray of float, optional) – (4, 4) Reference coil placement. If None (default), the first placement from coil_positions is used.

Returns:

pos_diff_abs (np.ndarray) – (3, n_pulses) Absolute position differences (R, A, S).
euler_rots_abs (np.ndarray) – (3, n_pulses) Absolute rotation angles in euler angles (alpha, beta, gamma).
pos_diff_rel (np.ndarray) – (3, n_pulses) Relative position differences (R, A, S).
euler_rots_rel (np.ndarray) – (3, n_pulses) Relative rotation angles in euler angles (alpha, beta, gamma).

pynibs.util.quality_measures.compute_pcd(delta_pos, delta_rot, skin_cortex_distance=20)¶

Computes _P_ulsewise _C_oil _D_isplacements (PCD) based on 3 position parameters (delta_pos) and 3 rotation parmeters (delta_rot).

The coil rotations (in euler angles) are transformed into a positional change projected on the cortex based on skin_cortex_distance as a proxy for the (local) change of the stimulation. delta_pos and delta_rot are expected to quantify motion w.r.t. the target coil position/roation, for example the absolute deltas to the first stimulation.

pynibs.util.quality_measures.euclidean_dist(nodes, tris, source, source_is_node=True)¶

Returns euclidean distance of all nodes to source node (triangle). This is just a wrapper for the gdist package.

Example

with h5py.File(fn,'r') as f:
    tris = f['/mesh/elm/triangle_number_list'][:]
    nodes = f['/mesh/nodes/node_coord'][:]
nodes_dist_euc, tris_dist_euc = euclidean_dist(nodes, tris, 3017)

pynibs.write_data_hdf5(data_fn,
                    data=[tris_dist_euc, nodes_dist_euc],
                    data_names=["tris_dist_euc", "nodes_dist_euc", "])
pynibs.write_xdmf(data_fn,hdf5_geo_fn=fn)

Parameters:

nodes (np.ndarray) – (n_nodes,3) The nodes, determined by their x-y-z-coordinates.
tris (np.ndarray) – (n_tris,3) Every triangle, determined by the node indices (vertices) that form it.
source (np.ndarray(int) or int) – Euclidean distances of all nodes (or triangles) to this one will be computed.
source_is_node (bool) – Whether source is a node idx or a triangle idx.

Returns:

nodes_dist (np.ndarray) – (n_nodes,) Geodesic distance between source and all nodes in mm.
tris_dist (np.ndarray) – (n_tris,) Geodesic distance between source and all triangles in mm.

pynibs.util.quality_measures.geodesic_dist(nodes, tris, source, source_is_node=True)¶

Returns geodesic distance in mm from all nodes to source node (or triangle). This is just a wrapper for the gdist package.

Example

with h5py.File(fn,'r') as f:
    tris = f['/mesh/elm/triangle_number_list'][:]
    nodes = f['/mesh/nodes/node_coord'][:]
nodes_dist_ged, tris_dist_ged = geodesic_dist(nodes, tris, 3017)

pynibs.write_data_hdf5(data_fn,
                    data=[tris_dist_ged, nodes_dist_ged],
                    data_names=["tris_dist_ged", "nodes_dist_ged"])
pynibs.write_xdmf(data_fn,hdf5_geo_fn=fn)

Parameters:

nodes (np.ndarray) – (n_nodes,3) The nodes, determined by their x-y-z-coordinates.
tris (np.ndarray) – (n_tris,3) Every triangle, determined by the node indices (vertices) that form it.
source (np.ndarray(int) or int) – Geodesic distances of all nodes (or triangles) to this one will be computed.
source_is_node (bool) – Whether source is a node idx or a triangle idx.

Returns:

nodes_dist (np.ndarray) – (n_nodes,) Geodesic distance between source and all nodes in mm.
tris_dist (np.ndarray) – (n_tris,) Geodesic distance between source and all triangles in mm.

pynibs.util.quality_measures.nrmsd(array, array_ref, error_norm='relative', x_axis=False)¶

Determine the normalized root-mean-square deviation between input data and reference data.

Notes

nrmsd = np.sqrt(1.0 / n_points * np.sum((data - data_ref) ** 2)) / (max(array_ref) - min(array_ref))

Parameters:

array (np.ndarray) – input data [ (x), y0, y1, y2 … ].
array_ref (np.ndarray) – reference data [ (x_ref), y0_ref, y1_ref, y2_ref … ]. if array_ref is 1D, all sizes have to match.
error_norm (str, optional, default="relative") – Decide if error is determined “relative” or “absolute”.
x_axis (bool, default: False) – If True, the first column of array and array_ref is interpreted as the x-axis, where the data points are evaluated. If False, the data points are assumed to be at the same location.

Returns:

normalized_rms – ([array.shape[1]]) Normalized root-mean-square deviation between the columns of array and array_ref.

Return type:

np.ndarray of float

pynibs.util.quality_measures.nrmse(array, array_ref, x_axis=False)¶

Determine the normalized root-mean-square deviation between input data and reference data.

nrmse = np.linalg.norm(array - array_ref) / np.linalg.norm(array_ref)

Parameters:

array (np.ndarray) – input data [ (x), y0, y1, y2 … ].
array_ref (np.ndarray) – reference data [ (x_ref), y0_ref, y1_ref, y2_ref … ]. if array_ref is 1D, all sizes have to match.
error_norm (str, optional, default="relative") – Decide if error is determined “relative” or “absolute”.
x_axis (bool, default: False) – If True, the first column of array and array_ref is interpreted as the x-axis, where the data points are evaluated. If False, the data points are assumed to be at the same location.

Returns:

nrmse – ([array.shape[1]]) Normalized root-mean-square deviation between the columns of array and array_ref.

Return type:

np.ndarray of float

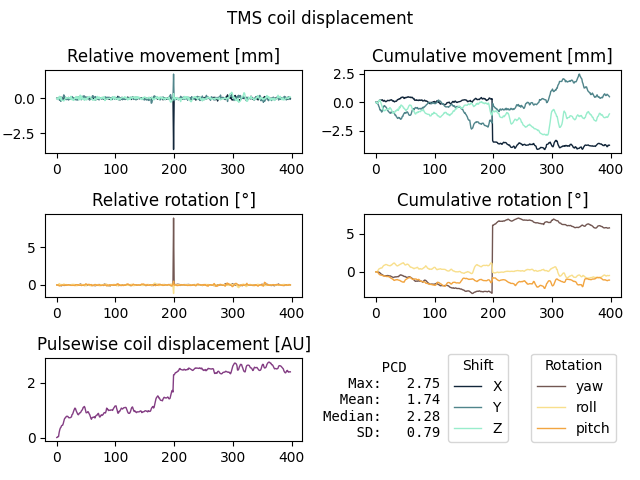

pynibs.util.quality_measures.plot_tms_motion_parameter(pos_diff, euler_rots, pcd=None, fname=None)¶

Plots TMS coil motion parameters.

Parameters:

pos_diff (np.ndarray) – (3, n_pulses) Position differences (R, A, S).
euler_rots (np.ndarray) – (3, n_pulses) Rotation angles in euler angles (alpha, beta, gamma).
pcd (np.ndarray, optional) – (n_pulses,) pulsewise coil displacements.
fname (str, optional) – Filename to save plot.

Returns:

axes – Figure axes.

Return type:

matplotlib.pyplot.axes

pynibs.util.rotations module¶

Some helper functions to take care of geometric rotations

pynibs.util.rotations.bases2rotmat(v1, v2)¶

Computes rotation matrix to rotate basis 1 (v1) to another basis (v2).

Parameters:

v1 (np.ndarray) – (3, 3) original basis.
v2 (np.ndarray) – (3, 3) rotated basis.

Returns:

rot_mat – (3, 3) rotation matrix to go from v1 to v2.

Return type:

np.ndarray

pynibs.util.rotations.euler_angles_to_rotation_matrix(theta)¶

Determines the rotation matrix from the three Euler angles theta = [Psi, Theta, Phi] (in rad), which rotate the coordinate system in the order z, y’, x’’.

Parameters:

theta (np.ndarray) –

Euler angles in rad.

Returns:

r –

Rotation matrix (z, y’, x’’).

Return type:

np.ndarray

pynibs.util.rotations.normalize_rot(rot)¶

Normalize rotation matrix.

Parameters:: rot (np.ndarray of float) – (3, 3) Rotation matrix.
Returns:: rot_norm – (3, 3) Normalized rotation matrix.
Return type:: np.ndarray of float

pynibs.util.rotations.quat_rotation_angle(q)¶

Computes the rotation angle from the quaternion in rad.

Parameters:: q (np.ndarray of float) – Quaternion, either only the imaginary part (length=3) [qx, qy, qz] or the full quaternion (length=4) [qw, qx, qy, qz].
Returns:: alpha – Rotation angle of quaternion in rad.
Return type:: float

pynibs.util.rotations.quat_to_rot(q)¶

Computes the rotation matrix from quaternions.

Parameters:: q (np.ndarray of float) – Quaternion, either only the imaginary part (length=3) or the full quaternion (length=4).
Returns:: rot – (3, 3) Rotation matrix, containing the x, y, z axis in the columns.
Return type:: np.ndarray of float

pynibs.util.rotations.quaternion_conjugate(q)¶

https://stackoverflow.com/questions/15425313/inverse-quaternion

Parameters:: q –
Returns:
Return type:

pynibs.util.rotations.quaternion_diff(q1, q2)¶

https://math.stackexchange.com/questions/2581668/ error-measure-between-two-rotations-when-one-matrix-might-not-be-a-valid-rotatio

Parameters:

q1 (np.ndarray) – Quaternion 1.
q2 (np.ndarray) – Quaternion 2.

Returns:

Difference between the two quaternions.

Return type:

float

pynibs.util.rotations.quaternion_inverse(q)¶

Compute the inverse of a quaternion.

The inverse of a quaternion is computed by taking the conjugate of the quaternion and dividing it by the norm of the quaternion. https://stackoverflow.com/questions/15425313/inverse-quaternion

Parameters:: q (np.ndarray) – Input quaternion.
Returns:: Inverse of the input quaternion.
Return type:: np.ndarray

pynibs.util.rotations.rot_to_quat(rot)¶

Computes the quaternions from rotation matrix (see e.g. https://www.euclideanspace.com/maths/geometry/rotations/conversions/matrixToQuaternion/).

Parameters:: rot (np.ndarray of float) – (3, 3) Rotation matrix, containing the x, y, z axis in the columns.
Returns:: q – Quaternion, full (length=4).
Return type:: np.ndarray of float

pynibs.util.rotations.rotate_matsimnibs_euler(axis, angle, matsimnibs, metric='rad')¶

Rotates a matsimnibs matrix around axis by angle.

Parameters:

axis (str) – One of (‘x’,’y’,’z’).
angle (float) – Angle to rotate system around axis.
matsimnibs (np.ndarray) – (4, 4) SimNIBS matsimnibs coil orientation and position matrix.
metric (str, default: 'rad') – One of (‘rad’, ‘deg’). If deg, angle is transformed to radians.

Returns:

rotated_matsimnibs – (4, 4) Rotated system.

Return type:

np.ndarray

pynibs.util.rotations.rotation_matrix_to_euler_angles(r)¶

Calculates the euler angles theta = [Psi, Theta, Phi] (in rad) from the rotation matrix R which, rotate the coordinate system in the order z, y’, x’’ (https://www.learnopencv.com/rotation-matrix-to-euler-angles/).

Parameters:

r (np.ndarray) – (3, 3) Rotation matrix (z, y’, x’’).

Returns:

theta –

Euler angles in rad.

Return type:

np.ndarray

pynibs.util.rotations.rotmat_from_vecs(vec1, vec2)¶

Find the rotation matrix that aligns vec1 to vec2

Parameters:

1 (vec) – A 3D vector (‘source’).
2 (vec) – A 3D vector (‘destination’).

Returns:

rot_mat (scipy.Rotation)
A transform matrix (3x3) which when applied to vec1, aligns it with vec2.

pynibs.util.simnibs module¶

pynibs.util.simnibs.calc_e_in_midlayer_roi(e, roi, mesh=None, qoi=None, layer_gm_wm_info=None)¶

This is to be called by Simnibs as postprocessing function per FEM solve.

Parameters:

e (np.ndarray or tuple) – E to interpolate. Used to be (v, dAdt).
roi (pynibs.roi.RegionOfInterestSurface) –
mesh (simnibs.msh.Mesh) –
qoi (list of str) – List of identifiers of the to-be calculated quantities of interest.
layer_gm_wm_info (dict[str, dict[str, np.ndarray]], optional) –
For each layer defined in the mesh (outer dict key: layer_id), provide pre-computed geometrical information as a dictionary (outer dict value):
- key: gm_nodes, For each layer node, the corresponding point on the GM surface.
- key: wm_nodes, For each layer node, the corresponding point on the WM surface.
- key: gm_center_distance, The distance between the layer nodes and the corresponding points on the GM.
- key: wm_center_distance, The distance between the layer nodes and the corresponding points on the WM.

Returns:

(roi.n_tris, 4) – (len(roi.layers)x(roi.layers[idx].surface.n_tris,4)) : np.vstack((e_mag, e_norm, e_tan, e_angle)).transpose()

Return type:

np.vstack((e_mag, e_norm, e_tan, e_angle)).transpose() for the midlayer

pynibs.util.simnibs.check_mesh(mesh, verbose=False)¶

Check a simmibs.Mesh for degenerated elements:

zero surface triangles

zerso volume tetrahedra

negative volume tetrahedra

Parameters:

mesh (str or simnibs.Mesh) –
verbose (book, default: False) – Print some verbosity messages.

Returns:

zero_tris (np.ndarray) – Element indices for zero surface tris (0-indexed)
zero_tets (np.ndarray) – Element indices for zero volume tets (0-indexed)
neg_tets (np.ndarray) – Element indicies for negative volume tets (0-indexed)

pynibs.util.simnibs.e_field_angle_theta(surface, mesh)¶

Compute angle between local the E-field vector and surface vector at the ROI nodes.

Parameters:

surface (simnibs.Msh) – The surface object representing the ROI.
mesh (simnibs.Msh) – The (volumetric) head mesh.

Returns:

theta – The angle between local the E-field vector and surface vector for each surface element of the ROI.

Return type:

simnibs.mesh.mesh_io.ElementData

pynibs.util.simnibs.e_field_gradient_between_wm_gm(roi_surf, mesh, gm_nodes, wm_nodes, gm_center_distance, wm_center_distance)¶

Compute local the E-field gradient at the ROI nodes between the gray and white matter boundary sufaces. Adapted from neuronibs/cortical_layer.py/add_e_field_gradient_between_wm_gm_field

Parameters:

roi_surf (simnibs.Msh) – The surface object representing the ROI.
mesh (simnibs.Msh) – SimNIBS headmesh.
gm_nodes (np.ndarray, (3, len(roi_surf.nodes))) – For each node of ‘roi_surf’ (representing, e.g., a cortical layer) the corresponding point on the gray matter surface. -> as returned by ‘precompute_geo_info_for_layer_field_interpolation’
wm_nodes (np.ndarray, (3, len(roi_surf.nodes))) – For each node of ‘roi_surf’ (representing, e.g., a cortical layer) the corresponding point on the white matter surface. -> as returned by ‘precompute_geo_info_for_layer_field_interpolation’
gm_center_distance (np.ndarray, (3, len(roi_surf.nodes))) – The distance between the layer nodes and their corresponding point on the gray matter surface. -> as returned by ‘precompute_geo_info_for_layer_field_interpolation’
wm_center_distance (np.ndarray, (3, len(roi_surf.nodes))) – The distance between the layer nodes and their corresponding point on the white matter surface. -> as returned by ‘precompute_geo_info_for_layer_field_interpolation’

Returns:

e_field_gradient_per_mm – The E-field gradient from the GM to the WM surface normalized to 1 mm with respect to the gray matter thickness. per ROI node

Return type:

simnibs.mesh.mesh_io.ElementData

pynibs.util.simnibs.fix_mesh(mesh, verbose=False)¶

Fixes simnibs.Mesh by removing any zero surface tris and zero volume tets and by fixing negative volume tets.

Parameters:

mesh (str or simnibs.Mesh) – Filename of mesh or mesh object.
verbose (bool, default: False) – Print some verbosity messages.

Returns:

fixed_mesh

Return type:

simnibs.Mesh

pynibs.util.simnibs.get_opt_mat(folder, roi=0)¶: Load optimal coil position/orientation matsimnibs from SimNIBS online FEM.

pynibs.util.simnibs.get_skin_cortex_distance(mesh, coords, radius=5)¶

Computes the skin-cortex distance (SCD).

Parameters:

mesh (str or simnibs.Mesh) – Mesh object or .msh filename.
coords (np.ndarray) – [3,] x,y,z coordinates to compute skin-cortex-distacnce for.
radius (float, default: 5) – Spherical radius around coords to include points in for SCD computation.

Returns:

SCD (np.ndarray of float) – Skin-cortex distance.
elm_in_roi (np.ndarray of int) – Elelement numbers from mesh.elm.elm_number that where used to calculate PCD for.

pynibs.util.simnibs.precompute_geo_info_for_layer_field_interpolation(simnibs_mesh, roi)¶

Precomputes geometric properties of the corresponding GM and WM nodes in the ‘simnibs_mesh’ of each node of each layer in 'roi'.

The corresponding point on the GM and WM surface to each vertex of te ROI surface are determined (by raycasting and nearest neighbour search as fallback) (interpolation will take place between these nodes)
The nodes are moved inside the gray matter by 20 % of their total distance from the GM/WM boundary to the midlayer.
The distance of the relocated GM and WM nodes to the ROI nodes is determined (required to computed the gradient per mm).

Parameters:

simnibs_mesh (simnibs.Msh) – The head model volume mesh.
roi (pynibs.roi.RegionOfInterestSurface) – The ROI object containing the layers.

Returns:

layer_gm_wm_info – For each layer defined in the mesh (outer dict key: layer_id), provide pre-computed geometrical information as a dictionary (outer dict value):

key: gm_nodes For each layer node, the corresponding point on the GM surface.
key: wm_nodes For each layer node, the corresponding point on the WM surface.
key: gm_center_distance The distance between the layer nodes and the corresponding points on the GM.
key: wm_center_distance The distance between the layer nodes and the corresponding points on the WM.

Return type:

dict[str, dict[str,np.ndarray]]

pynibs.util.simnibs.read_coil_geo(fn_coil_geo)¶

Reads a coil .geo file.

Parameters:

fn_coil_geo (str) – Filename of .geo file created from SimNIBS containing the dipole information
this (This reads data from lines like) – SP(-5.906416407434245, -56.83325018618547, 104.15283927746198){0.0}; or VP(-70.46122751969759, -68.28080005454271, 29.538763084748382){-0.10087956492712635, 0.0, -0.9948986447775034};

Returns:

dipole_pos (np.ndarray of float) – (n_dip, 3) Dipole positions (x, y, z).
dipole_mag (np.ndarray of float) – (n_dip, 1) Dipole magnitude.

pynibs.util.simnibs.smooth_mesh(mesh, output_fn, smooth=0.8, approach='taubin', skin_only_output=False, smooth_tissue='skin')¶

Smoothes the skin compartment of a simnibs mesh. Uses one of three trimesh.smoothing approaches. Because tetrahedra and triangle share the same nodes, this also smoothes the volume domain.

Parameters:

mesh (str or simnibs.Mesh) –
output_fn (str) –
smooth (float, default: 0.8) – Smoothing aggressiveness. [0, ..., 1].
approach (str, default: 'taubin') – Which smoothing approach to use. One of ('taubin', 'laplacian', 'humphrey'.)
smooth_tissue (str or list of int, default: 'skin') – Which tissue type to smooth. E.g. 'gm' or [2, 1002].
skin_only_output (bool, default: True) – If true, a skin only mesh is written out instead of the full mesh.

Returns:

<file> (The smoothed mesh.)
.. figure:: ../../doc/images/smooth_mesh.png – :scale: 50 % :alt: Original and smoothed surfaces and volumes.

Left: original, spiky mesh. Right: smoothed mesh.

pynibs.util.util module¶

pynibs.util.util.add_center(var)¶

Adds center to argument list.

Parameters:

var (list of float) –

List containing two values [f1,f2].

Returns:

out –

List containing the average value in the middle [f1, mean(f1,f2), f2].

Return type:

list of float

pynibs.util.util.bash(command)¶

Executes bash command and returns output message in stdout (uses os.popen).

Parameters:

command (str) – Bash command.

Returns:

output (str) – Output from stdout.
error (str) – Error message from stdout.

pynibs.util.util.bash_call(command)¶

Executes bash command and returns output message in stdout (uses subprocess.Popen).

Parameters:: command (str) – bash command.

pynibs.util.util.calc_n_network_combs(n_e, n_c, n_i)¶

Determine number of combinations if all conditions may be replaced between N_i elements (mixed interaction).

Parameters:

n_e (int) – Number of elements in the ROI.
n_c (int) – Number of conditions (I/O curves).
n_i (int) – Number of maximum interactions.

Returns:

n_comb – Number of combinations.

Return type:

int

pynibs.util.util.compute_chunks(seq, num)¶

Splits up a sequence _seq_ into _num_ chunks of similar size. If len(seq) < num, (num-len(seq)) empty chunks are returned so that len(out) == num.

Parameters:

seq (list of something) – (n_ele) List containing data or indices, which is divided into chunks.
num (int) – Number of chunks to generate.

Returns:

out – num sub-lists of seq with each of a similar number of elements (or empty).

Return type:

list of num sublists

pynibs.util.util.cross_product(A, B)¶

Evaluates the cross product between the vector pairs in a and b using pure Python.

Parameters:

A (np.ndarray of float) – (2, (N, 3))
B (np.ndarray of float) – (2, (N, 3)) Input vectors, the cross product is evaluated between.

Returns:

c – (N, 3) Cross product between vector pairs in a and b.

Return type:

np.ndarray of float

pynibs.util.util.cross_product_einsum2(a, b)¶

Evaluates the cross product between the vector pairs in a and b using the double Einstein sum.

Parameters:

a (np.ndarray of float) – (2, (N, 3))
b (np.ndarray of float) – (2, (N, 3)) Input vectors, the cross product is evaluated between.

Returns:

c – (N, 3) Cross product between vector pairs in a and b.

Return type:

np.ndarray of float

pynibs.util.util.differential_evolution(fobj, bounds, mut=0.8, crossp=0.7, popsize=20, its=1000, **kwargs)¶

Differential evolution optimization algorithm

Parameters:

fobj (function object) – Function to optimize.
bounds (dict) – Dictionary containing the bounds of the free variables to optimize.
mut (float, default: 0.8) – Mutation factor.
crossp (float, default: 0.7) – Cross population factor.
popsize (int, default: 20) – Population size.
its (int, default: 1000) – Number of iterations.
kwargs (dict) – Arguments passed to fobj (constants etc…).

Returns:

best (dict) – Dictionary containing the best values.
fitness (float) – Fitness value of best solution.

pynibs.util.util.generalized_extreme_value_distribution(x, mu, sigma, k)¶

Generalized extreme value distribution.

Parameters:

x (ndarray of float) – (n_x) Events.
mu (float) – Mean value.
sigma (float) – Standard deviation.
k (float) – Shape parameter.

Returns:

y – (n_x) Probability density of events

Return type:

ndarray of float

pynibs.util.util.get_cartesian_product(array_list)¶

Generate a cartesian product of input arrays (all combinations).

cartesian_product = get_cartesian_product(array_list)

Parameters:: array_list (list of 1D ndarray of float) – Arrays to compute the cartesian product with.
Returns:: cartesian_product – (M, len(arrays)) Array containing the cartesian products (all combinations of input vectors).
Return type:: ndarray of float

Examples

pynibs.util.util.intersection_vec_plan(ray_dir, ray_origin, plane_n, plane_p, eps=1e-06)¶

Computes intersection between vector (‘ray’) and plane.

Parameters:

ray_dir (np.ndarray) – (3,) (Rotated) vector direction.
ray_origin (np.ndarray) – (3,) Any point on the ray.
plane_n (np.ndarray) – (3,) Plane normal.
plane_p (np.ndarray) – (3,) Any point on the plane.
eps (float, default=1e-6) – Resolution.

Returns:

inters – (3,) Intersection location. (np.inf, np.inf, np.inf) if no intersection.

Return type:

np.ndarray

pynibs.util.util.invert(trans)¶

Invert rotation matrix.

Parameters:: trans (np.ndarray of float) – (3, 3) Rotation matrix.
Returns:: rot_inv – (3, 3) Inverse rotation matrix.
Return type:: np.ndarray of float

pynibs.util.util.likelihood_posterior(x, y, fun, bounds=None, verbose=True, normalized_params=False, **params)¶

Determines the likelihood of the data following the function “fun” assuming a two variability source of the data pairs (x, y) using the posterior distribution.

Parameters:

x (ndarray of float) – (n_points) x data.
y (ndarray of float) – (n_points) y data
fun (function) – Function to fit the data to (e.g. sigmoid).
bounds (dict, optional) – Dictionary containing the bounds of “sigma_x” and “sigma_y” and the free parameters of fun.
verbose (bool, default: True) – Print function output after every calculation.
normalized_params (bool, default: False) – Are the parameters passed in normalized space between [0, 1]? If so, bounds are used to denormalize them before calculation.
**params (dict) – Free parameters to optimize. Contains “sigma_x”, “sigma_y”, and the free parameters of fun.

Returns:

l – Negative likelihood.

Return type:

float

pynibs.util.util.list2dict(l)¶

Transform list of dicts with same keys to dict of list

Parameters:: l (list of dict) – List containing dictionaries with same keys.
Returns:: d – Dictionary containing the entries in a list.
Return type:: dict of lists

pynibs.util.util.load_muaps(fn_muaps, fs=1000000.0, fs_downsample=100000.0)¶

pynibs.util.util.mutual_coherence(array)¶

Calculate the mutual coherence of a matrix A. It can also be referred as the cosine of the smallest angle between two columns.

mutual_coherence = mutual_coherence(array)

Parameters:: array (ndarray of float) – Input matrix.
Returns:: mutual_coherence – Mutual coherence.
Return type:: float

pynibs.util.util.norm_percentile(data, percentile)¶

Normalizes data to a given percentile.

Parameters:

data (np.ndarray) – (n_data, ) Dataset to normalize.
percentile (float) – Percentile of normalization value [0 … 100].

Returns:

data_norm – (n_data, ) Normalized dataset.

Return type:

np.ndarray

pynibs.util.util.rd(array, array_ref)¶

Determine the relative difference between input data and reference data.

Parameters:

array (np.ndarray) – input data [ (x), y0, y1, y2 … ].
array_ref (np.ndarray) – reference data [ (x_ref), y0_ref, y1_ref, y2_ref … ] if array_ref is 1D, all sizes have to match.

Returns:

rd – (array.shape[1]) Relative difference between the columns of array and array_ref.

Return type:

ndarray of float

pynibs.util.util.recursive_len(item)¶

Determine len of list of lists (recursively).

Parameters:: item (list of list) – List of list.
Returns:: len – Total length of list of lists.
Return type:: int

pynibs.util.util.sigmoid_log_p(x, p)¶

pynibs.util.util.tal2mni(coords, direction='tal2mni', style='nonlinear')¶

Transform Talairach coordinates into (SPM) MNI space and vice versa.

This is taken from https://imaging.mrc-cbu.cam.ac.uk/imaging/MniTalairach and http://gibms.mc.ntu.edu.tw/bmlab/tools/data-analysis-codes/mni2tal-m/

Parameters:

coords (np.ndarray or list) – x,y,z coordinates.
direction (str, default: 'tal2mni) – Transformation direction. One of (‘tal2mni’, ‘mni2tal’).
style (str, default: 'nonlinear') – Transformation style. One of (‘linear’, ‘nonlinear’).

Returns:

coords_trans

Return type:

np.ndarray

pynibs.util.util.unique_rows(a)¶

Returns the unique rows of np.array(a).

Parameters:: a (np.ndarray of float) – (m, n) Array to search for double row entries.
Returns:: a_unique – (k, n) array a with only unique rows.
Return type:: np.array

pynibs.util package

pynibs.util package¶

Submodules¶

pynibs.util.dosing module¶

pynibs.util.quality_measures module¶

pynibs.util.rotations module¶

pynibs.util.simnibs module¶

pynibs.util.util module¶

Table of Contents

Previous topic

Next topic

This Page
